Worldwide AC input with continuous operation from 85VAC to 270VAC, 47-440Hz to include 115VAC / 230VAC, AC power in all foreign countries, AC aircraft power, AC generator and DC to AC Inverters. Not limited to 95VAC. See KEY FEATURES.
Wide DC input range of 9 to 36VDC to include 12VDC, 24VDC, 28VDC aircraft power, HMMWV and DC generators. Not limited to 11VDC. See KEY FEATURES.
Supplies 26.5VDC / 5.25Amp (7 Amp peak) to each transceiver.
ZERO WAIT SWITCHING™. Instantaneous automatic switch-over to the rechargeable backup battery during AC or DC power failure. 4 Rechargeable batteries are included.
Automatic battery charging while operating the transceiver from AC or DC power source.
Fully operational with or without the batteries.
The transceivers are securely mounted on a Jerk-And-Run mount. No tools are needed.
Optional 5 watt 6-Net High Efficiency Amplified Speaker™ with special Automatic Level Control (ALC) for local/remote operation of up to 6 transceivers.
Reversible Data/Accessory connector option for AN/PRC-117F, AN/PRC-150 (optional).
One Operator. Fully automatic. No user intervention or setup is required! No switches to push/turn.
Operating temperature: -40°C to +70°C to match the transceiver operating specifications.
Small size: 32.5″L x 20.5″W x 11.3″H.
Weighs 74 lbs (With batteries. Without Transceivers).
3 Years warranty. Commercial Off The Shelf (COTS).

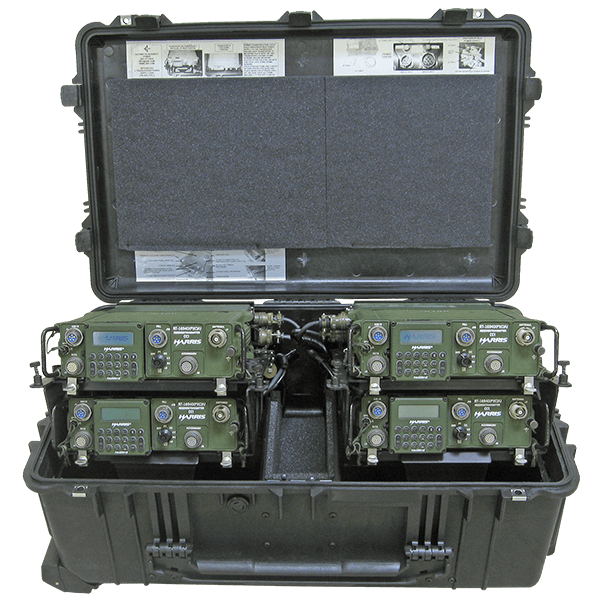

Integrated, self-contained power/voice/data case for four AN/PSC-5, AN/PSC-5D, MBMMR, AN/PRC-117F, AN/PRC-150, AN/PSC-14 BGAN, AN/PRC-138, AN/PRC-113, URC-200, MXF-400 and RF-5000 series transceivers in vehicle convoy, Command Post, TOC, shelter, HMMWV, military & civilian vehicles, aircraft, shipboard, portable applications.
Uninterruptible power system case for 4 transceivers that operates from a worldwide 85-265VAC / 47-440Hz AC power source or 9-36VDC DC power source to include AC or DC aircraft power, HMMWV, AC generator and vehicle battery.
Powers 4 transceivers during Fly Away missions, training and exercise.
Eliminates extensive and expensive battery replacement (Savings of $40,000 to $80,000 a year in wasted batteries). Conserves batteries for critical missions.
Other antennas and longer Coax cables are available. Contact ABP for more information.
