Part number: ABP-ITCC-1 (specify transceiver type)
Each unit includes 3 Uninterruptible Power Supplies, 3 24V/2AH Rechargeable Battery Packs, 3 TAS-1, 1 6N-HEAS-1, 4 Desktop AC/DC, 9 AUC-1, 4 DCC-2, 1 DCC-4 cables, AC and DC cables and one Operation/Maintenance manual.
Worldwide input power (including aircraft power): 85-270 VAC / 47-440 Hz or 9-36 VDC.
Uninterruptible 26.5VDC / 5.25Amp, 7A peak per radio.
ZERO WAIT SWITCHING™. Instantaneous automatic switchover to the rechargeable backup battery during AC or DC power failure. 3 Batteries are included.
Same battery capacity as BB 490/U battery at 1/2 the size and 3/4 weight! Install 2 Removable, replaceable internal battery packs for same capacity as BB 390A/U.
Fully operational with or without the battery.
One operator. No user intervention or setup is required!
Automatic battery charging while operating the transceiver and speaker from AC or DC power source.
6-Net High Efficiency Amplified Speaker™ ABP-6N-HEAS-1 with special Automatic Level Control (ALC) for local/remote operation of up to 6 transceivers.
Transceiver Audio Splitter™ ABP-TAS-1 allows a connection of up to six speakers to one transceiver.
Reversible Data/Accessory connector option for AN/PRC-117F and AN/PRC-150 (optional).
Operating temperature: -40 to +70°C.
Robust, water/air tight and sand/dust proof case is a two-man carry and has retractable handles for easy mobility.

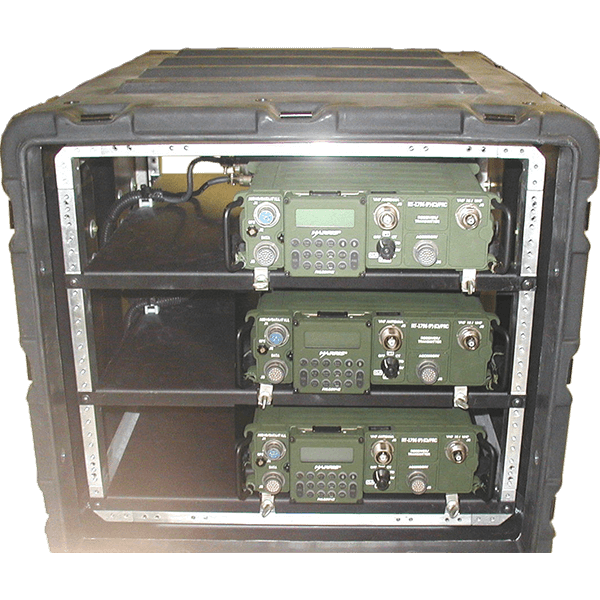

3 Transceivers are mounted on a Jerk-And-Run mount.
Storage space for Speaker, cables, G.F.E. Transceiver, Laptop Computers, handset and antennas.
3 Auxiliary 26VDC/1A outputs for external equipment.
3 Years warranty. Commercial Off The Shelf (COTS).
Applications
Integrated, self-contained communication case for 3 AN/PSC-5, AN/PSC-5D, MBMMR, AN/PRC-117F, AN/PRC-150, AN/PSC-14 BGAN, AN/PRC-138, AN/PRC-113, AN/URC-200, MXF-400 series and RF-5000 series transceivers in vehicle convoy, Command Post, TOC, shelter, HMMWV, military & civilian vehicles, aircraft, shipboard, portable.
Interoperable. Operates different transceiver types.
Powers 3 transceivers during Fly Away/training/exercise.
Uninterruptible transceiver operation from almost any AC power source worldwide (including aircraft power) or 9-36VDC power source (HMMWV and other vehicles).
Eliminates extensive and expensive battery replacement.
Other antennas and longer Coax cables are available. Contact ABP for more information.
