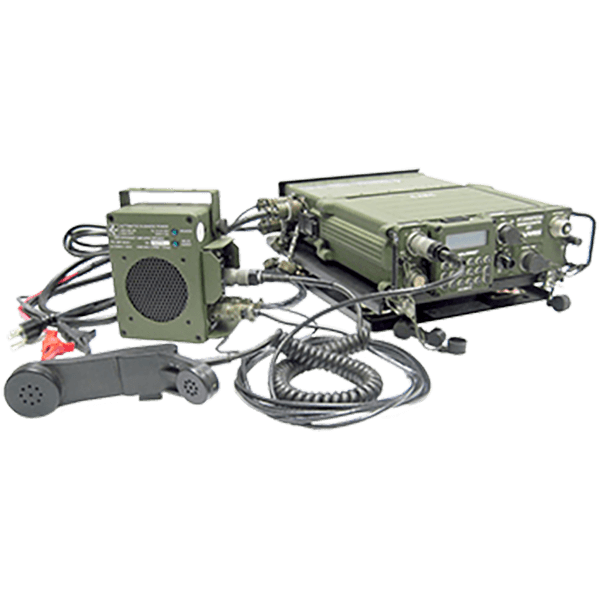

Transceiver Kit with Data Connector Option ABP-TRSC-KIT-1
Part number: ABP-TRSC-KIT-1 – with Data Connector Option. For AN/PRC-117F and AN/PRC-150
Each unit includes one Transceiver Power Unit™ uninterruptible power supply, one Shock/Vibration Rack Mount, one High Efficiency Amplified Speaker™, one 24V/2AH battery pack, AC / DC / Audio cables and manuals.
Worldwide input power (including aircraft power): 85-270 VAC / 47-440 Hz or 9-36 VDC.
Uninterruptible 26.5VDC / 5.25Amp, 7A peak for radio.
ZERO WAIT SWITCHING™. Instantaneous automatic switchover to the rechargeable backup battery during AC or DC power failure. 1 Battery is included.
Same battery capacity as BB 490/U battery at 1/2 the size and 3/4 weight! Install 2 Removable, replaceable internal battery packs for same capacity as BB 390A/U.
Fully operational with or without the battery.
No user intervention or setup is required!
Automatic battery charging while operating the transceiver and speaker from AC or DC power source.
Reversible Data/Accessory connector for AN/PRC-117F and AN/PRC-150 (ABP-TRSC-KIT-1 only).
Local and remote operating status: Night Vision Goggles compatible AC, DC and BATTERY GOOD self test lights, remote relay contacts and TTL logic.
Transceiver and power unit are mounted on a Jerk-And-Run mount with quick release.
High Efficiency Amplified Speaker™ with special Automatic Level Control (ALC) is included for local/remote operation
Operating temperature: -40°C to +70°C.
Waterproof and sand/dust proof.
Small size and light weight.
Auxiliary 26VDC/1A output for external equipment.
Commercial Off The Shelf (COTS).
3 Years warranty.
Applications
Uninterruptible power supply for AN/PSC 5, AN/PSC-5D, MBMMR, AN/PRC 117F, AN/PRC 150, AN/PSC-14 BGAN, AN/PRC 138, AN/PRC 113, AN/URC 200, MXF 400 and RF-5000 series transceivers in vehicle convoy, Command Post, TOC, shelter, HMMWV, military & civilian vehicles, aircraft, shipboard and portable applications.
Transceiver operation from almost any AC power source worldwide (including aircraft or generator power) or 9-36VDC power source (HMMWV and other vehicles).
Transceiver mounted on Jerk-And-Run shock mount.
Amplified Speaker for hands-free and remote monitoring.
Eliminates extensive and expensive battery replacement.
Other antennas, antenna switches and Coax cables are available. Contact ABP for more information.
