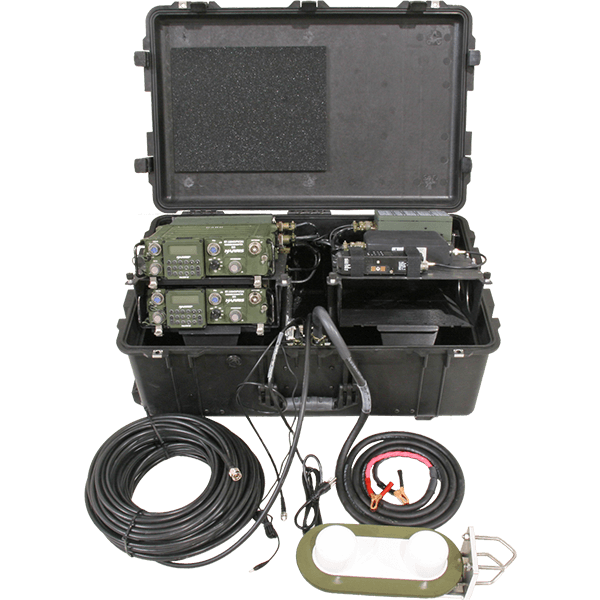

4 Transceivers MBITR / JEM and Iridium 9505 Phone Integrated Case ABP-ITPC-4-MBITR50-IR
Part number: ABP-ITPC-4-MBITR50-IR (specify transceiver type)
Each unit includes 50 Watts Amplification, Uninterruptible Power Supplies, 24V/2AH Rechargeable Battery Packs, Cables (AC and DC) and one Operation/Maintenance manual.
Worldwide input power (including aircraft power): 85-270 VAC / 47-440 Hz or 9-36 VDC (Not limited to 18VDC).
Uninterruptible power for transceivers and Iridium Phone.
ZERO WAIT SWITCHING™: Instantaneous automatic switchover between external AC and DC power sources.
50 Watts Multi-Band Power Amplification, FH for PRC-148 MBITR / JEM.
2 Transceivers operation from rechargeable backup battery (included) during AC or DC power failure.
Automatic battery charging while operating the transceiver and speaker from AC or DC power source.
Self-contained ready for operation! No need to remove components from case. No setup time is required!
Optional High Efficiency Amplified Speaker with special Automatic Level Control (ALC) for local/remote operation.
High Efficiency Amplified Speaker with special Automatic Level Control (ALC) is included for local/remote operation.
Reversible Data/Accessory connector option for AN/PRC-117F and AN/PRC-150 (optional).
Operating temperature: -40°C to +70°C (-40°C to +85°C for Active Iridium Antenna).
Space age robust composite case with wheels, retractable handle, quick lock latches and internal gasket. Water/air tight and sand/dust proof.
Small size: 24.8″L x 19.4″W x 13.9″H.
Weighs 99 lbs (with Active Antenna, battery and cables).
Transceivers are mounted on Jerk-And-Run mounts.
Storage space for Speakers, Cables, Transceivers, Laptop Computer, Handsets, Iridium Satellite Phone plus Active antenna and LOS / SATCOM antennas.
Auxiliary 26VDC/1A output for external equipment.
3 Years warranty. Commercial Off The Shelf (COTS).
Applications
Rapid Deployment, Portable SATCOM On-The-Move.
Integrated, Enroute SATCOM communication case for 2 each AN/PRC 117F, AN/PSC 5, AN/PSC-5D, MBMMR, AN/PRC-150 Transceivers, 1 AN/PRC-148 MBITR and an IRIDIUM 9505 Satellite Phone Active Transmitter/Receiver Antenna for use in vehicle convoy, Command Post, TOC, shelter, HMMWV, military & civilian vehicles, aircraft, shipboard, portable applications.
Interoperable. Operates different transceiver types.
Uninterruptible transceiver operation from almost any AC power source worldwide (including aircraft power) or 9-36VDC power source (HMMWV and other vehicles). No need to remove components from case.
ABP-DCC-SLV-2 External DC input cable with slave HMMWV connector (10 feet long).
Other antennas, SATCOM power amplifier Kits and Coax cables are available. Contact ABP for more information.
