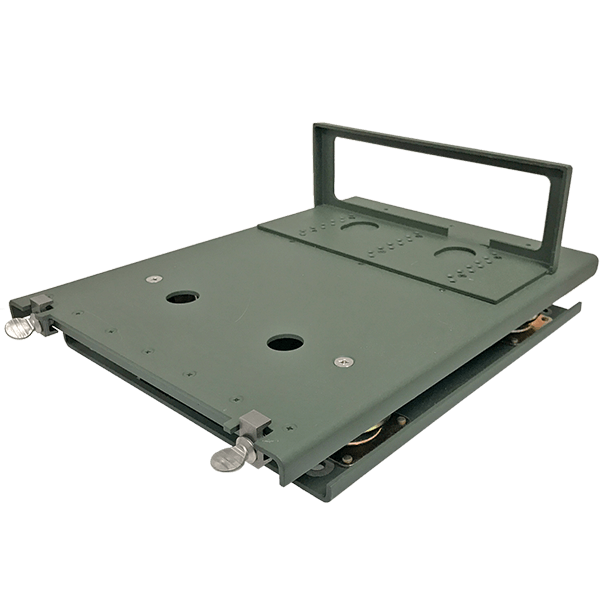

Shock / Vibration Vehicle Mount For Transceiver and ABP-PA-1, ABP-PA/BT-1, ABP-PDA-1, ABP-PDA/BT-1 ABP-RM-2
Part number: ABP-RM-2 – For transceiver and ABP-PA-1 or ABP-PA/BT-1 or ABP-PDA-1 or ABP-PDA/BT-1
Only ABP Shock / Vibration Rack Mounts are fully compatible with all ABP Uninterruptible Power Supplies and Power Adapters. Beware of unauthorized imitation. ABP warranty will be voided if ABP Uninterruptible Power Supplies and Power Adapters are installed in unauthorized mounts.
Features
- The transceiver and the ABP power supply are latched together and attached to the mount with 2 quick release thumb screws that provide positive lock (no tools are necessary for mounting/dismounting).
- Four heavy duty shock/vibration isolators provide protection against severe impact shock with efficient vibration isolation for off-road applications.
- The height of the rack mount can be reduced to only 0.6″ (3.9″H with transceiver and power supply) for fixed location and case installation.
- Operating Temperature Range: -65°C to +150°C .
- Size: 13.7″ L x 10.5″W x 1.8″H (5.1″H with transceiver and power supply).
- Weight: 6.5 Lbs.
- Commercial Off The Shelf (COTS).
- 3 Years warranty.
Applications
- Transceiver Shock/Vibration Mount for use in HMMWV, military & civilian vehicles, aircraft, shipboard, Command Post, TOC and shelter.
- Shock/Vibration Rack/Vehicle Mount for AN/PSC-5, AN/PSC-5D, MBMMR, AN/PRC-117F, AN/PRC-138 AN/PRC-150, AN/PRC-113, AN/URC-200, MXF-400 Series, RF-5000 Series transceivers together with ABP Transceiver Power Unit™ uninterruptible power supply part numbers ABP-AC/DC/BT-TR-1 and ABP-AC/DC/BT-TR-2.
- Shock/Vibration Rack/Vehicle Mount for AN/PSC-5, AN/PSC-5D, MBMMR, AN/PRC-117F, AN/PRC-138 AN/PRC-150, AN/PRC-113, AN/URC-200, MXF-400 Series, RF-5000 Series transceivers together with ABP Power Adapter part number ABP-PA- 1 or ABP-PA/BT-1.
- Shock/Vibration Rack/Vehicle Mount for AN/PRC-117F and AN/PRC-150 transceivers together with ABP Power/Data Adapter part number ABP-PDA-1 or ABP-PDA/BT-1.
- The mount accommodates Jerk-And-Run applications, command post, TOC, shelter, vehicle, aircraft and communication rack installations.
- ABP-RM-1 and ABP-RM-2 Rack Mounts are direct replacement for the standard military rack mounts and other rack mount adapters.
