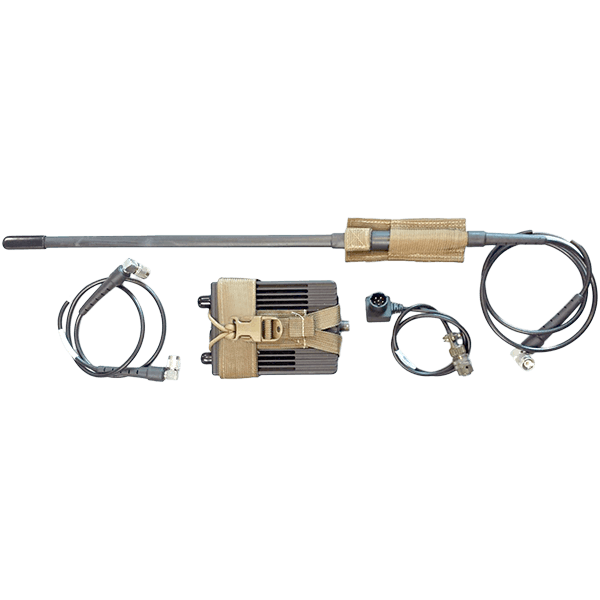

20 Watt Amplifier Kit 30 MHz – 512 MHz, Multi-Band Automatic Band-Switching with LOS Antenna ABP-10PA35-KT1

Part number: ABP-10PA35-KT1

The ABP-10PA35-KIT(s) are a portable, lightweight, waterproof, fully automatic band-switching RF amplifier kit(s) for multi-band VHF/UHF Tactical Radio equipment employing legacy, proprietary and emerging waveforms. The amplifier covers the frequency band of 30-512 MHz using six high speed auto switching filters to assure harmonic suppression and is SINCGARS, HAVE QUICK, and ECCM compatible. The amplifier includes Voltage Spike Suppression, RF sensing, T/R switching, Automatic Level Control (ALC), six automatically switched harmonic filter bands (DAMA capable), and protection against antenna mismatch and over-temperature. The unit may be powered from a single XX90 or similar batteries; or 12 and 24 VDC vehicle power. Protection against accidental polarity reversal is also provided.  Low current on standby due to “sleep mode” greatly extends battery life in field use. The amplifier comprises a rugged submersible 3-piece aluminum case.
