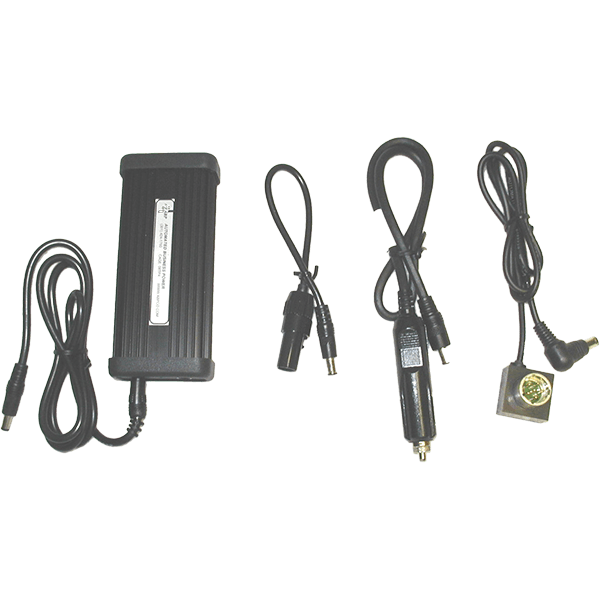

DC Laptop Power Kits ABP-DCHX
Part number: ABP-DCHX – specify laptop make and model.
Supplies DC Power to any Laptop Computer from DC power source or BA-5590 / BB-390 / BB-490 / BB-590 / BB-2590 Battery.
Features
- Operates from a BA-5590, BB-390, BB-490, BB-590 or BB-2590 battery in the field. A 3 feet long DC input adapter cable with battery mating connector is included.
- Operates from 11-16VDC. A DC input cable with cigarette lighter plug is included. A model that operates from a nominal 24VDC is available.
- Operates from the Air In-Seat Power on commercial airlines.
- Provides a safe power source for the computer or printer by protecting them from spikes and power surges that may occur in a DC power electrical system.
- Protected against short circuit, over-voltage, over-temperature and low input voltage.
- Input noise filter.
- Compliant with FCC Class B, RTCA DO-i 60D Section 21, DO-233 and European CE guidelines.
- Operating temperature: 0°C to +50°C.
- Size: 5.5″ L x 2.5″ W x 1.25″ H.
- Weight: 10 oz (17 oz including the cables).
- Commercial Off The Shelf (COTS).
- 3 Years warranty.
Applications
- Operation of a Laptop computer in field applications, portable communication cases, vehicular applications, command post, TOC, shelter, aircraft and communication rack.
- Operate the Laptop computer in the field and charge its internal battery for extended use.
- Operate printer in field applications.
Specifications
Dimensions
5.5 × 2.5 × 1.25 inDC Input Voltage (VDC)
11 – 16
Input Voltage
DC Input
Output Voltage
Adjustable
Power Output (Watts)
60
Related products
Options & Accessories
- HMMWV NATO Slave connector termination.
