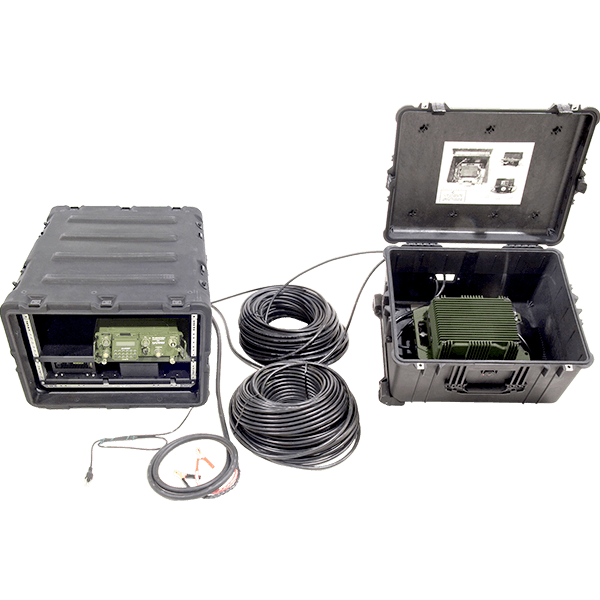

Integrated ITCC HF Communication Case System ABP-ITCC-5C
Part number: ABP-ITCC-5C (with 125 Watts power amplification and HF Antenna Coupler case).
Each system includes 125 Watts HF power amplification and HF Antenna Coupler, Uninterruptible Power System, one Dual Handset High Efficiency Amplified Speaker™, AC, DC, Audio Cables and one Operation/Maintenance manual.
Field proven, 1.6 to 30MHz, 125 Watts HF amplification for AN/PRC-150 with fast tune coupler. JITC Certified.
Worldwide input power (including aircraft power): 85-270 VAC / 47-440 Hz or 9-36 VDC (Not limited to 18VDC).
Uninterruptible 26.5VDC / 5.25Amp, 7A peak for transceivers. Uninterruptible power for amplifier.
ZERO WAIT SWITCHING™. Instantaneous automatic switchover between external AC and DC power sources. Transceiver and speaker switchover to the rechargeable back up battery during AC or DC power failure.
Automatic battery charging while operating the from AC or DC power source.
Fully operational with or without the battery.
Transceiver is mounted on a Jerk-And-Run mount.
Auxiliary 26VDC/1A outputs for external equipment.
HF Antenna Coupler case and long cables are provided.
Dual Handset Efficiency Amplified Speaker™ with KDU mount and Automatic Level Control (ALC) for local or remote operation of the transceiver up to 1,000 feet.
Reversible Data/Accessory connector for AN/PRC-150 (optional).
115VAC/60Hz AC output for laptop computer (optional).
Robust, water/air tight and sand/dust-proof case has handles and wheels for easy mobility. Two-man carry.
Storage space for Speaker, cables, G.F.E. Transceiver, handsets, antennas and laptop computer, accessories.
3 Years warranty. Commercial Off The Shelf (COTS).
Applications
Integrated 1 HF Transceiver HF-On-The-Move, TOC-in-a-Box, DCP Communication Case system with removable lids and 125 watts HF amplification for AN/PRC-150 for use in vehicle convoy, Command Post, TOC, shelter, HMMWV, military/civilian vehicles, aircraft, shipboard, portable.
Powers 1 transceiver during training, and exercise.
Self-contained amplified power/voice/data case.
Uninterruptible transceiver and amplifier operation from almost any AC power worldwide (including aircraft power) or 9-36VDC power source (HMMWV, other vehicles). No need to remove components from case.
