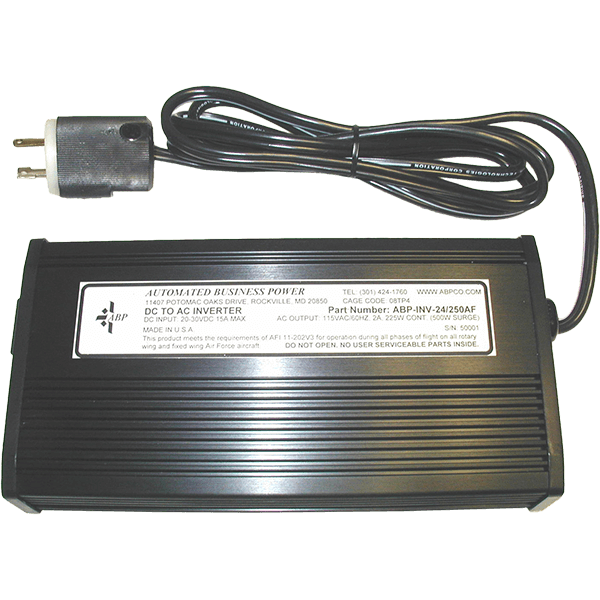

Universal Laptop Power Kit ABP-INV-24/250AF
Part number: ABP-INV-24/250AF
Supplies 115 VAC / 60 Hz Power to any Laptop Computer from 24VDC power source or BA-5590 / BB-390 / BB-490 / BB-590 / BB-2590 Battery.
Features
- Operates from a BA-5590, BB-390, BB-490, BB-590 or BB-2590 battery in the field. (Specify BA-5590 mating connector termination).
- Operates from a HMMWV and other military vehicles, boat or aircraft. (Specify HMMWV NATO Slave connector termination as needed).
- Operates from 20 to 30VDC (24VDC nominal).
- Provides safe 115VAC / 60Hz up to 225 Watts power for the computer or printer by protecting them from spikes and power surges that may occur in a DC power electrical system.
- Protected against short circuit, over-voltage, over-temperature and low input voltage.
- Input noise filter.
- Meets the requirements of AFI 11-202V3 for operation during all phases of flight on all rotary wing and all fixed wing US Air Force aircraft.
- Operating temperature: 0°C to +40°C.
- Size: 8.5″ L x 4.5″ W x 1.5″ H
- Weight: 43 oz
- Commercial Off The Shelf (COTS)
- 3 Years warranty.
Applications
- Operation of a Laptop computer in HMMWV, Military vehicles, vehicular applications, field applications, portable communication cases, command post, TOC, shelter, aircraft and communication rack.
- Operate the Laptop computer in the field and charge its internal battery for extended use.
- Operate printer in field applications.
Specifications
Dimensions
8.5 × 4.5 × 1.5 inInput Voltage
DC Input
DC Input Voltage (VDC)
24
Output Voltage
115 AC
Frequency Band (MHz)
60-225
Power Output (Watts)
225
Related products
Options & Accessories
- BA-5590 mating connector termination.
- HMMWV NATO Slave connector termination.
